Single Sign-On (SSO)

Vantage supports single sign-on (SSO) via self-service single sign-on as well as several other supported IdPs. You can use self-service SSO to connect your SAML (Security Assertion Markup Language) Identity Provider (IdP) to your Vantage account. With self-service SSO, you can use your existing credentials to authenticate and access your Vantage account. SSO streamlines the login process since users don't need to create a new account or remember another set of login credentials for Vantage.

Vantage uses Just-in-Time (JIT) provisioning for user provisioning. As long as a user is granted access to your IdP, the user will be provisioned an account in Vantage when they first log in.

Self-Service SSO via SAML​

note

Currently, Vantage supports self-service connection for SAML. If you'd like to connect one of the other supported IdPs (e.g., Google Workspace or Windows Active Directory), view the instructions below. If you do not see your IdP listed, contact Vantage Support.

What Is SAML SSO?​

SAML is an XML-based open standard for exchanging authentication and authorization data between parties. It enables secure and standardized communication between identity providers, service providers, and users. SAML allows for seamless and secure access to web applications and services.

Before you can connect your IdP to Vantage, you will need the following:

  • A valid account with a SAML IdP
  • Owner role access to Vantage
  • Your IdP's signing certificate and sign-on URL

Connect Your SAML IdP​

  1. From the Vantage console, navigate to the Authentication page.
  2. Click New Connection.
  3. Select the SAML connection type.
    Expand to view example image

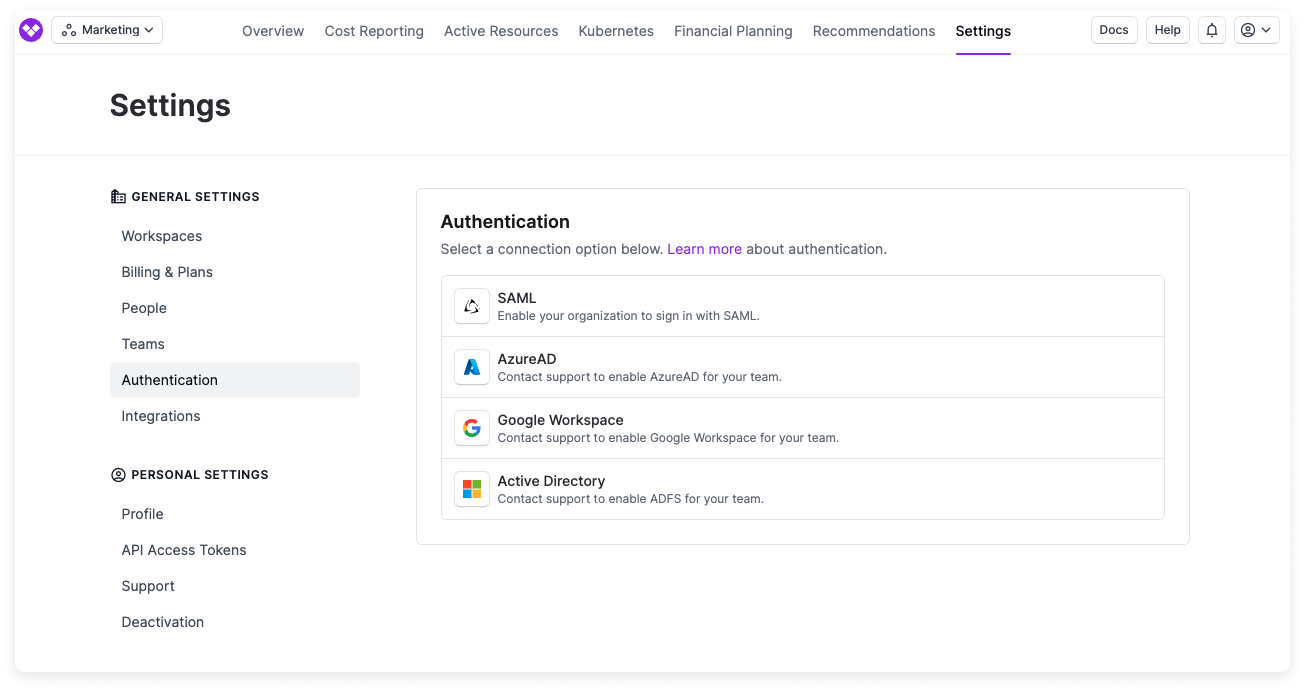

    Create SSO integration in Vantage console
  4. Copy the Single Sign-On URL and Audience URL that are provided on screen. You will need both of these URLs for your IdP's configuration.
    Expand to view example image

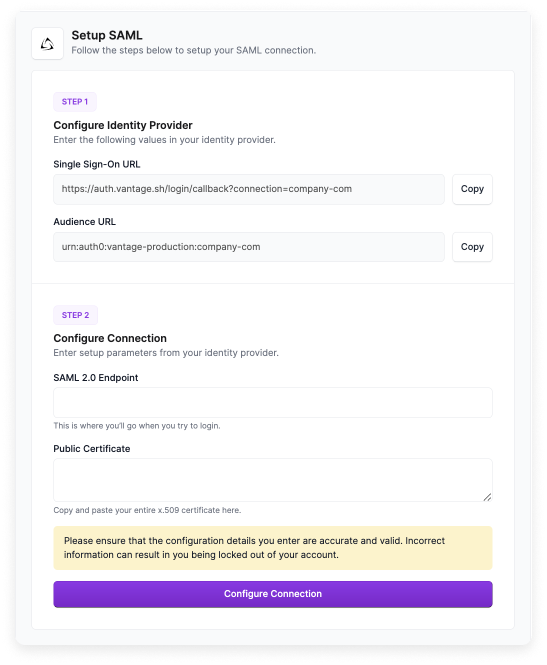

    Configuration for SAML SSO integration in Vantage console
  5. To add a logo to your connection's thumbnail, use the provided Vantage Logo.
  6. Once you create the Vantage application within your IdP, copy the following information:
    • Copy the SAML Sign-On URL provided by your IdP, then paste it into the SAML 2.0 Endpoint field of the Vantage SAML page.
    • Copy the Signing Certificate provided by your IdP, then paste it into the Public Certificate field of the Vantage SAML page.
  7. Ensure you've entered the correct credentials, then click Create Connection. You'll be redirected back to the Authentication page, where you will be able to see your connection.
  8. To enable the connection, switch the Active toggle to on. You will remain logged in to Vantage, but the next time you attempt to log in, you will be redirected to your IdP's sign-on page.
  9. Optional: If you would like to set up SSO group mappings based on your existing Vantage teams, see the SSO Group Mappings instructions below.
Important

For security reasons, Vantage does not recommend IdP-initiated sessions. For Okta, our recommended best practice is to create a tile called Vantage with a link to https://console.vantage.sh/login. For more information, see the Create a Bookmark App instructions, on the Okta documentation site.

If you want to use an IdP-initiated session configuration, please contact Vantage Support.

Example: Create a SAML SSO Connection with Okta​

info

For detailed instructions, see the Okta support documentation.

  1. Create an app integration on Okta.
  2. For Sign-in method, select SAML 2.0. Click Next.
    Expand to view example image

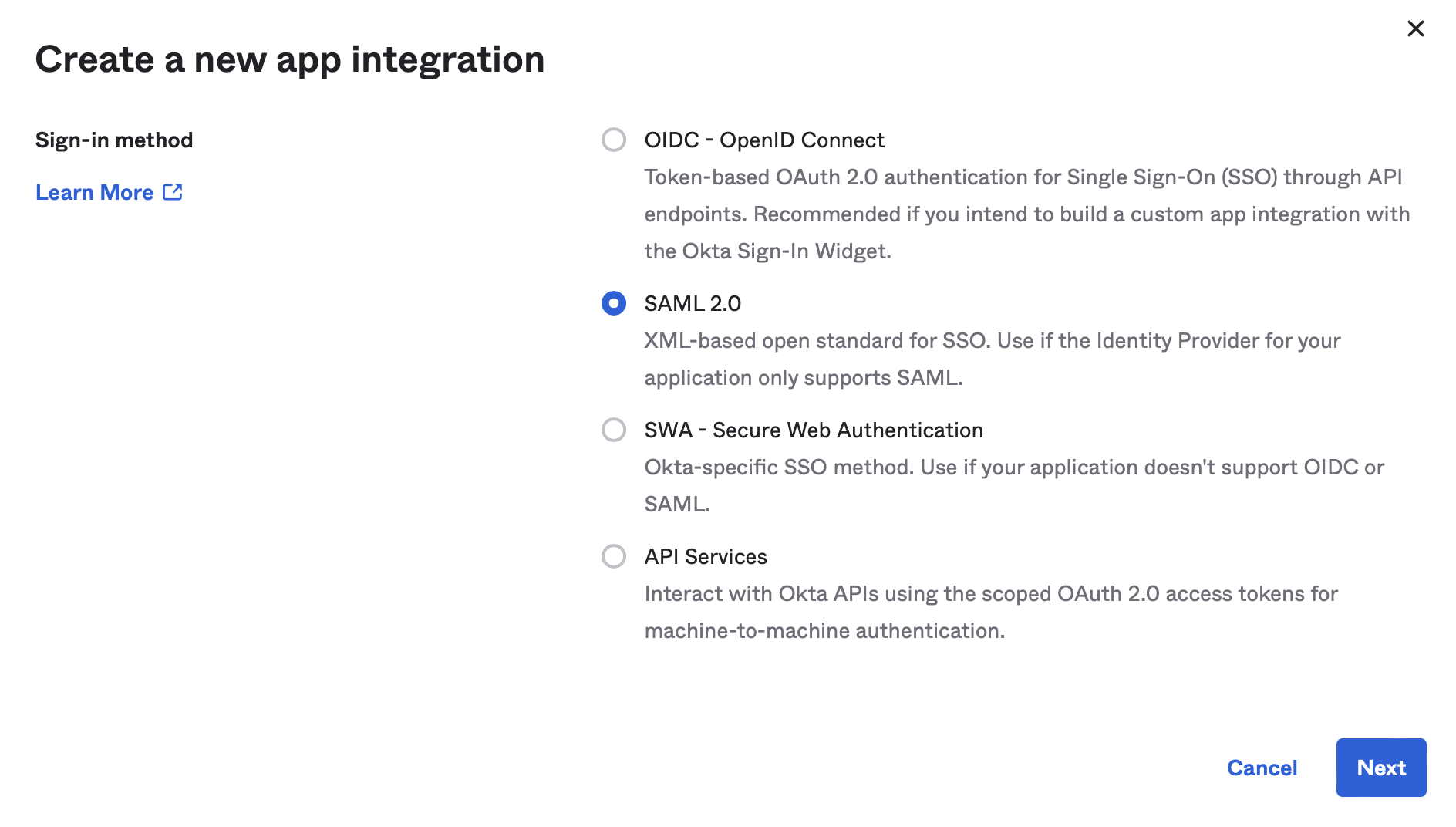

    Create a new Okta app integration
  3. For App Name, enter Vantage.
  4. For App Logo, upload the Vantage Logo, then click Next.
    Expand to view example image

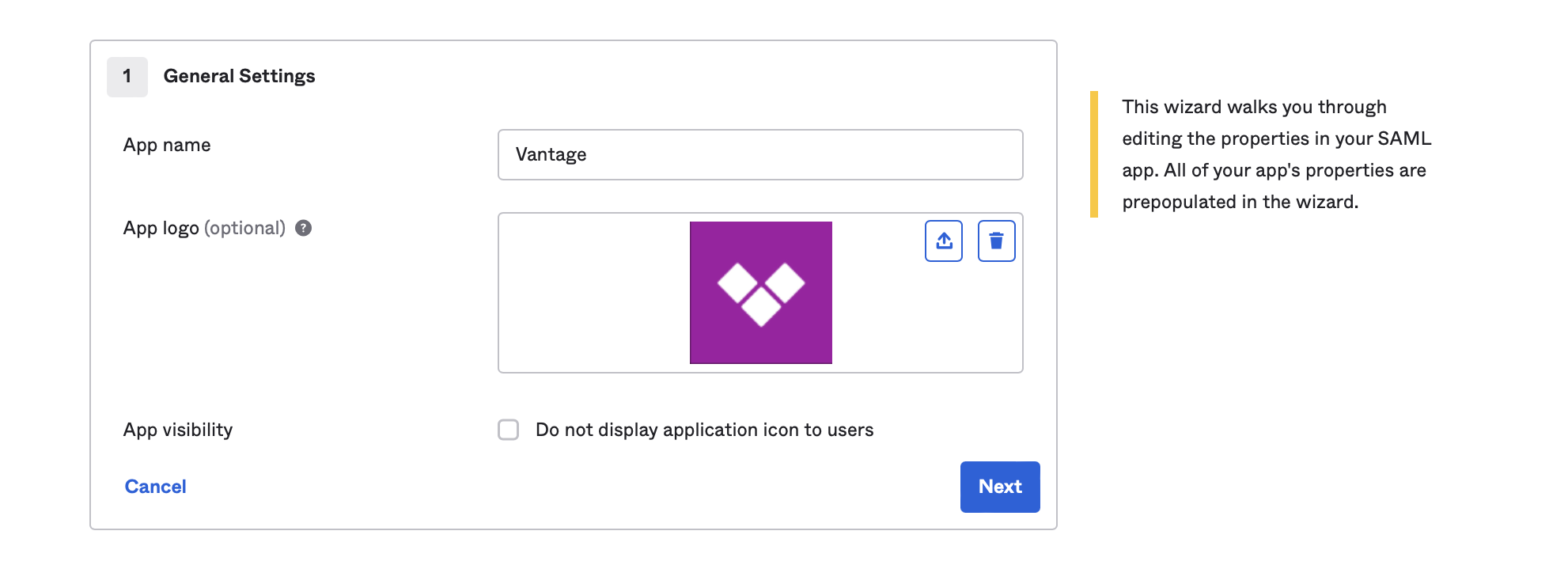

    Okta app settings
  5. Enter the requested Single sign on URL (for example, https://auth.vantage.sh/login/callback?connection=company-com) and Audience URI (SP Entity ID) (for example, urn:auth0:vantage-production:company-com), provided on the Vantage Authentication setup page.
    Expand to view example image

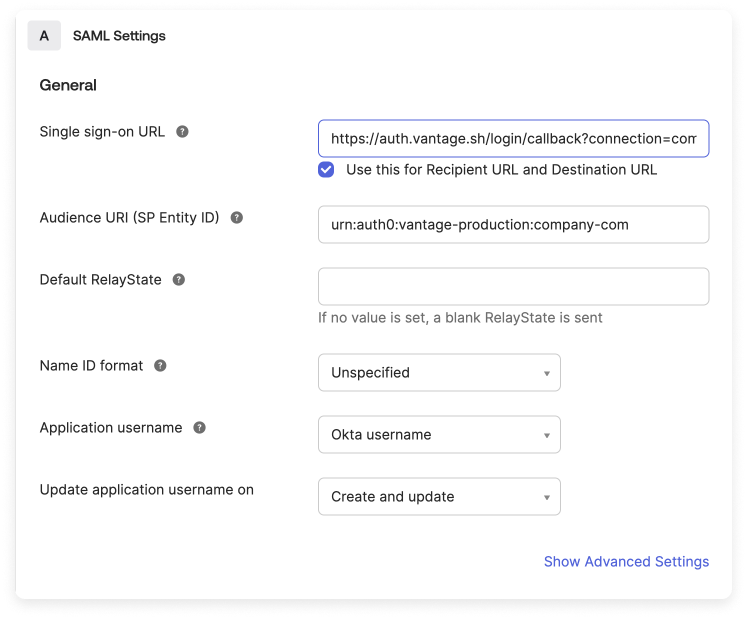

    Okta SAML settings
  6. Set the Application username to Email.
  7. Once the app integration is set up, copy the Okta-provided Identity Provider Single Sign On URL and X.509 Certificate back into Vantage.
  8. To enable the connection, switch the Active toggle to on. You will remain logged in to Vantage, but the next time you attempt to log in, you will be redirected to the Okta sign-on page.

Test Your SSO Configuration​

The recommended steps for testing your SSO configuration are as follows:

  1. Once your connection is enabled, do not close or log out of your current Vantage application session.
  2. Open a private browser or incognito window, and visit https://console.vantage.sh.
  3. Enter your email address. If your SSO connection is configured correctly, you will be redirected to your IdP.
  4. Enter your login credentials. If you can complete the login, your configuration is correct.

If you experience any issues with logging in after you've enabled your connection, contact Vantage Support.

Disconnect Your IdP​

If you ever need to disconnect your IdP from Vantage:

  1. Navigate to the Authentication page.
  2. To disable your connection, switch the Active toggle off. To permanently remove your IdP, click the Delete button.

After disabling/removing the connection, you will be able to log in to the app with your original Vantage login credentials.

Set Up Other IdPs​

note

If you do not see your IdP listed, please contact Vantage Support.

Authenticate with Azure AD​

info

The following instructions are based on the Microsoft documentation.

Step 1: Obtain Your Primary Domain from Microsoft Entra ID​

Expand to view example image

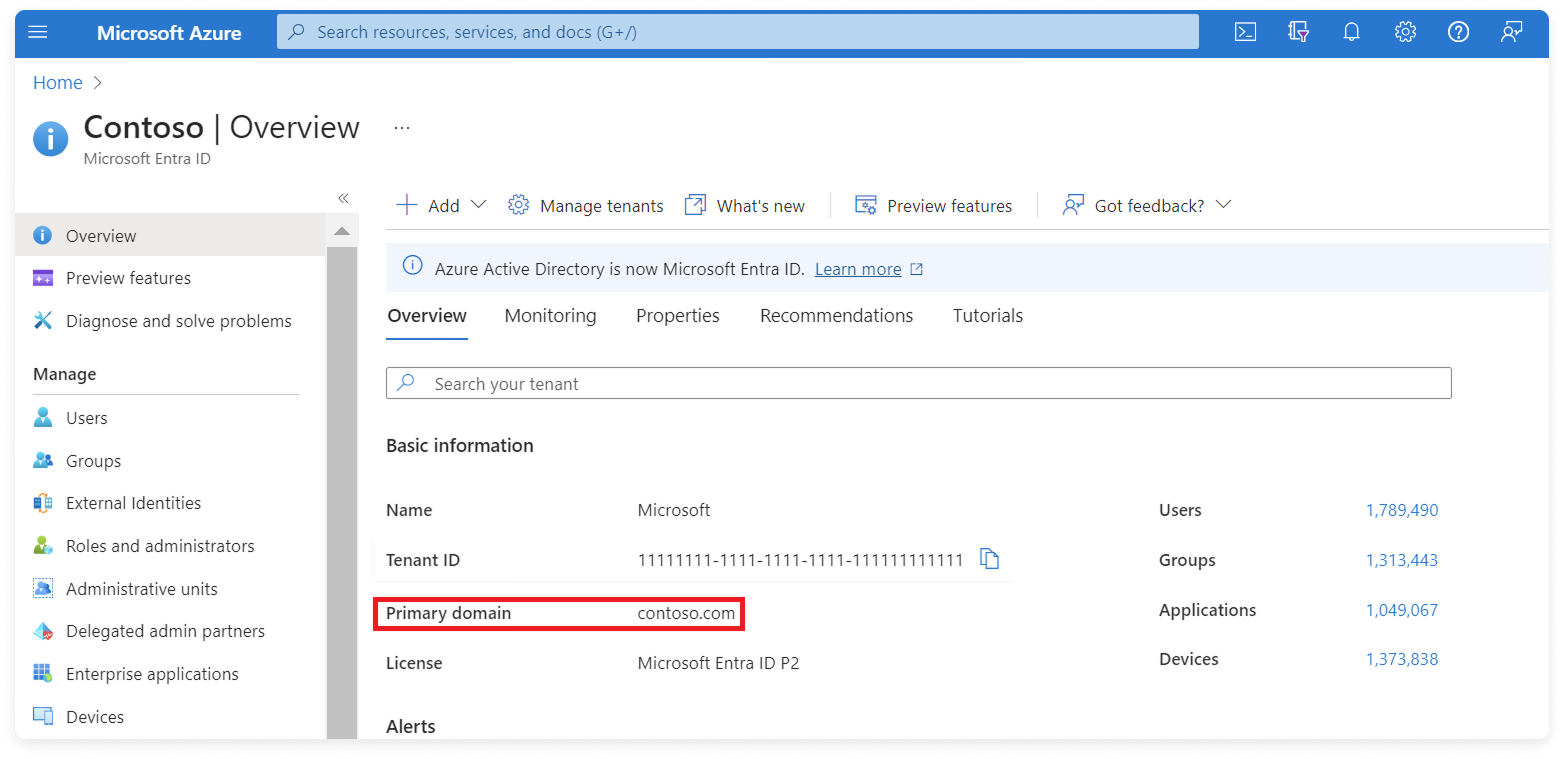

Obtaining primary domain from Entra ID

Source: Microsoft

  • Log in to the Azure portal.
  • Navigate to Microsoft Entra ID.
  • On the Overview screen, copy the Primary domain to use in the last step.

Step 2: Register an Application with Azure AD​

Expand to view example image

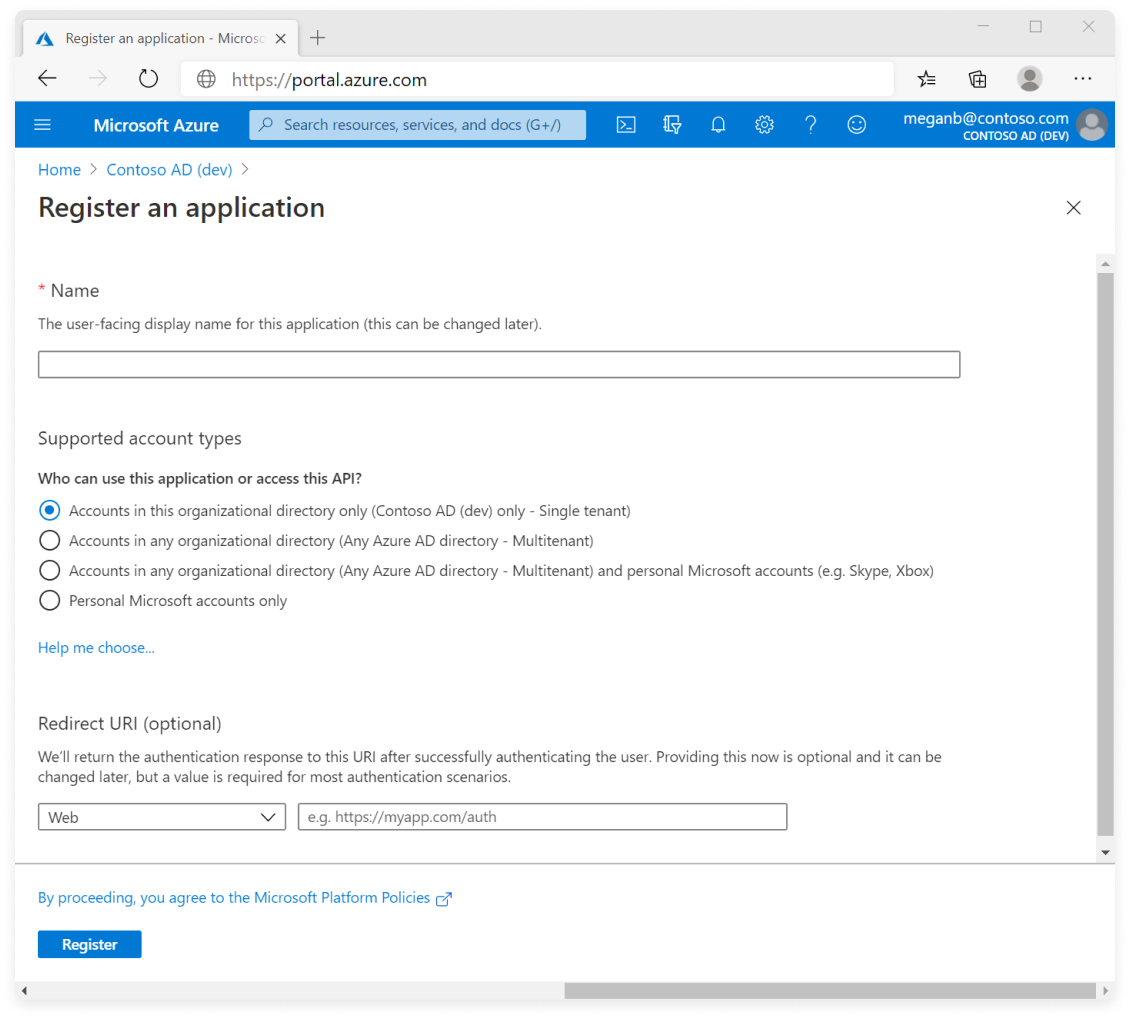

Configuration for Azure app registration

Source: Microsoft

  • From the Azure portal, navigate to App registrations, then click New registration.
  • Enter a name for your app (e.g., Vantage).
  • Set the Supported account types option to the appropriate setting for your organization.
  • For Redirect URI, select Web and enter https://auth.vantage.sh/login/callback.
  • Click Register.
  • Once the app registration is complete, copy the Application (client) ID displayed on the app's Overview page to use in the last step.

Step 3: Generate a Client Secret​

Expand to view example image

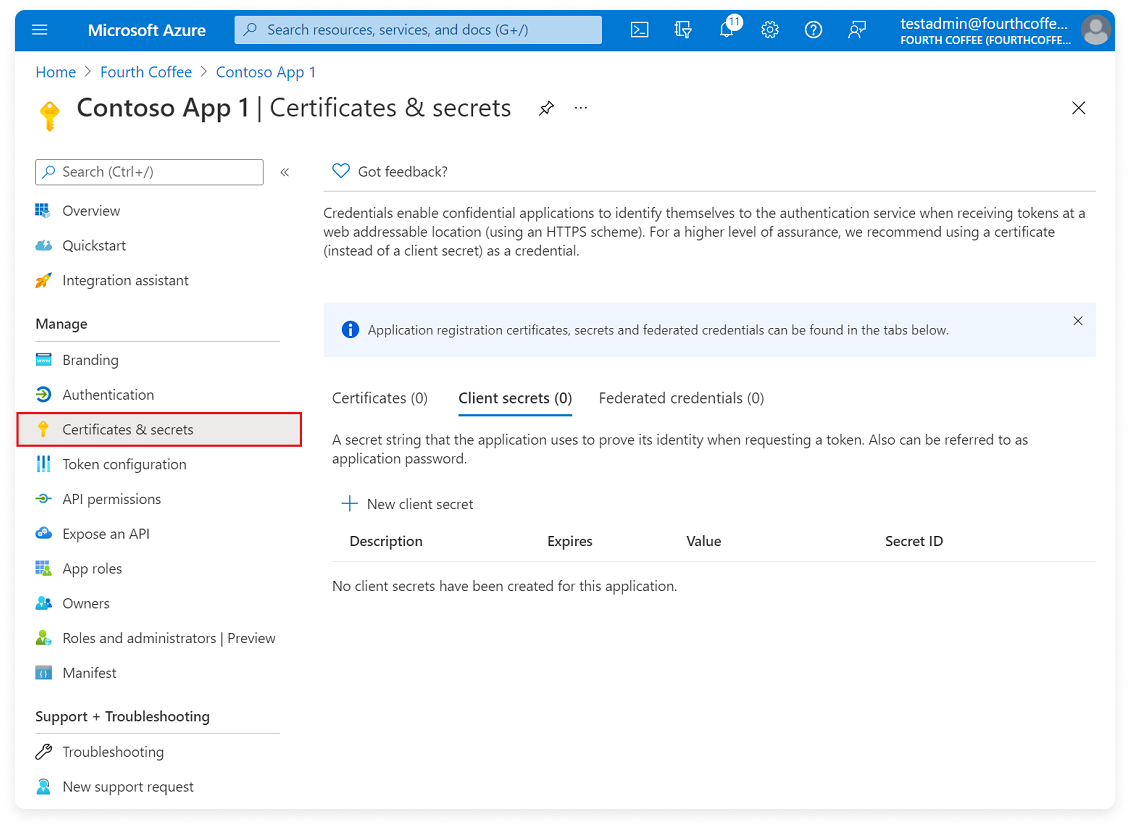

Configuration for Azure client secret

Source: Microsoft

  • On the left navigation, select Certificates & secrets.
  • Under the Client secrets tab, click New client secret.
  • Enter a description and select an expiration for the secret.
    caution

    If this secret expires, you will need to supply Vantage with a new secret before the expiration date.

  • Click Add.
  • Copy the secret's Value to use in the last step.

Step 4: Add API Permissions​

Expand to view example image

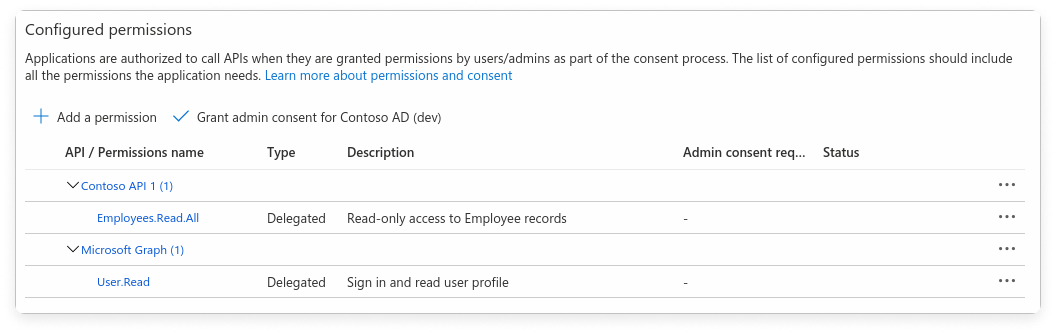

Configuration for Azure app API permissions

Source: Microsoft

  • On the left navigation, select API permissions.
  • Select Add a permission.
  • Under the Microsoft APIs tab, find and select the appropriate permissions required by Vantage:
    • Directory.Read.All
    • User.Read
  • At the bottom, click Add permissions.

Step 5: Grant Admin Consent (If Required)​

Expand to view example image

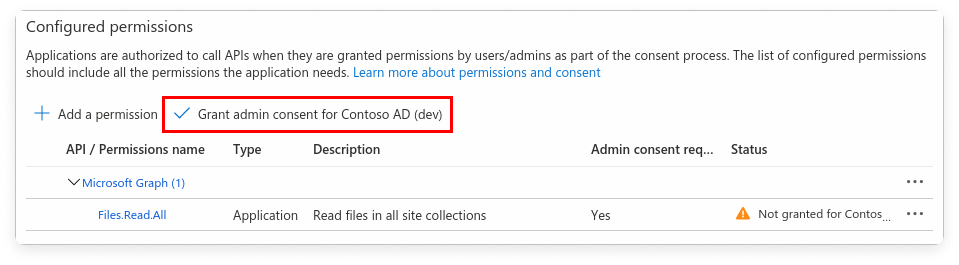

Configuration for Azure app admin consent

Source: Microsoft

  • Still under API permissions, you may see a section for Grant admin consent for {your domain}.
  • Click Grant admin consent, and follow the prompts.

Step 6: Add Azure Credentials to Vantage​

  • Navigate to the Authentication screen in Vantage.
  • Select AzureAD.
  • Under Step 2, enter the following information:
    • Primary Domain: The value you obtained in step 1. Ensure you enter only the domain name (e.g., yourcompany.com). Do not include http://www.
    • Client ID: The client ID you obtained in step 2.
    • Client Secret: The secret you obtained in step 3.
  • Click Configure Connection.

After your connection is complete, if you would like to set up SSO group mappings based on your existing Vantage teams, see the SSO Group Mappings instructions below.

Authenticate with Google Workspace​

info

The following instructions are based on the Google documentation.

Step 1: Register an OAuth Application with Google​

  • From the Google API Console, select an existing project or click CREATE PROJECT.
  • From the left navigation menu, click Credentials.
  • At the top, click CREATE CREDENTIALS > OAuth client ID.
    note

    If this is your first time working with this Google project, you will have to configure your consent screen. Follow the Google documentation linked above.

  • For Application type, select Web application.
  • Enter a Name for your application (e.g., Vantage).
  • For Authorized JavaScript origins, click ADD URI and enter https://auth.vantage.sh.
  • For Authorized redirect URIs, click ADD URI and enter https://auth.vantage.sh/login/callback.
  • Click CREATE.
Click to view example image

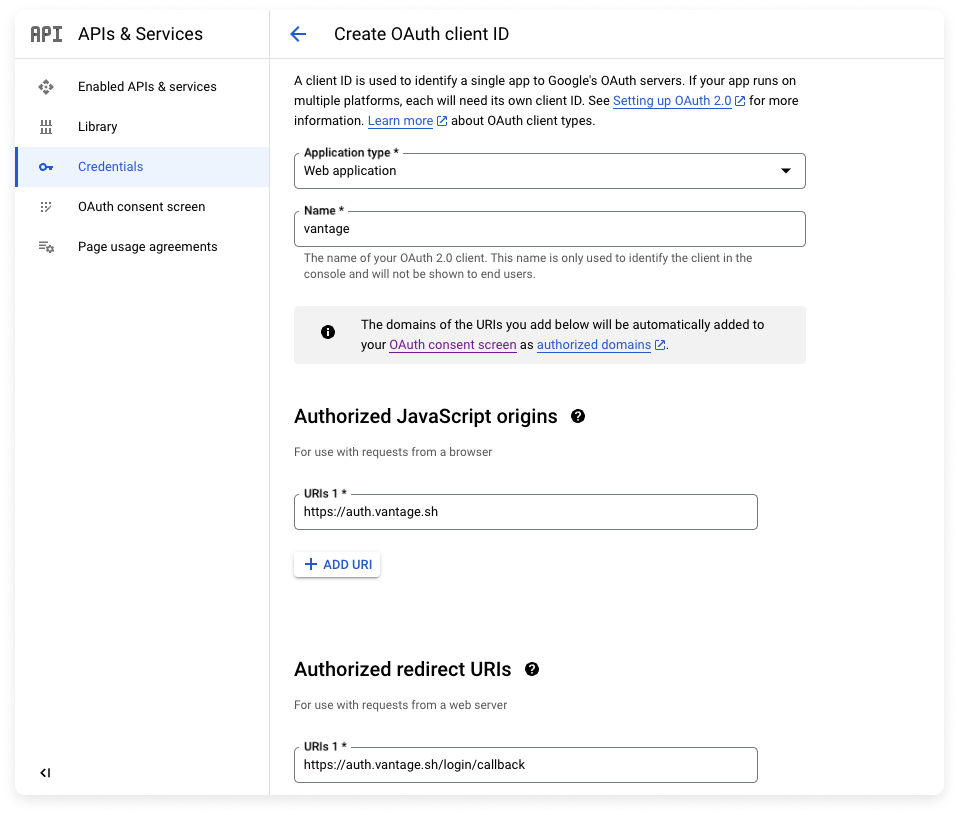

Google Workspace app setup

Step 2: Obtain Application Credentials and Contact Vantage Support​

  • Copy your app's CLIENT ID and CLIENT SECRET.
  • Contact Vantage Support for information on how to send these credentials to finish connecting with the Vantage app.

After your connection is complete, if you would like to set up SSO group mappings based on your existing Vantage teams, see the SSO Group Mappings instructions below.

Authenticate with Rippling​

Vantage is available in the Rippling App Shop, where you can find instructions for connecting your Vantage account to Rippling.

Set Up SSO Group Mapping for Teams​

With the SSO Team Assignment feature, you can automatically assign users to Vantage teams that match the name of a corresponding SSO group.

Prerequisites​

To use the SSO Team Assignment feature, you will need to have teams already set up in Vantage. See the Role-Based Access Control: Create Teams documentation for information on how to create teams in Vantage.

Enable SSO Team Assignment​

  1. From the top menu of the Vantage console, click Settings.
  2. On the left navigation menu, select Authentication. You will see your SSO connection listed.
  3. In the SSO Team Assignment section of the connection, click the toggle button to enable the feature.

Vantage will match SSO groups to Vantage teams based on the case-sensitive name of the SSO group. If a team name in Vantage matches an SSO group name, the user will be placed into that team in Vantage. Users will be mapped into the appropriate teams during their next login.

Important

After the SSO Team Assignment setting is enabled, users will be removed from Vantage teams that are not present in the SSO groups. If you want to modify this behavior, contact support@vantage.sh. The Everyone team will remain unchanged.

Create Custom Mappings​

If your team names in Vantage do not match your identity provider, or you want multiple groups to be added to the same team, you can create custom mappings.

  1. To create custom mappings, click the Show dropdown menu next to Custom Mappings.
  2. In the SSO Group Name column, enter the group names from your SSO provider. The SSO Group Name you enter should match the corresponding name in your identity provider. Note that the mapping is case-sensitive.
  3. From the Vantage Team dropdown, select the corresponding Vantage team.
  4. Click Add to add additional mappings.

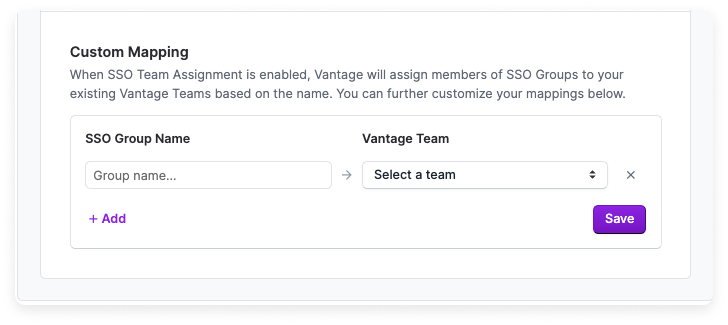

    SSO team assignment toggle in the console
  5. When you are finished, click Save.
note

A user’s teams are updated on every login. Vantage will also automatically remove users from teams that are no longer present in the SSO groups list.

Group Mapping in Okta — Enabling groups Attribute​

Vantage uses the groups field in the SSO payload for matching SSO groups to Vantage teams. As long as your identity provider can pass a groups attribute in the payload, you can use SSO group mapping. For some providers, like Okta, you may need to enable group mapping.

To enable group mapping in Okta:

  1. Navigate to the Vantage SAML application in Okta.
  2. Edit your SAML Settings.
  3. For Name, enter groups.
  4. If you would like to pass through all groups, set the Filter to Matches regex with a value of .*.
    Click to view example image

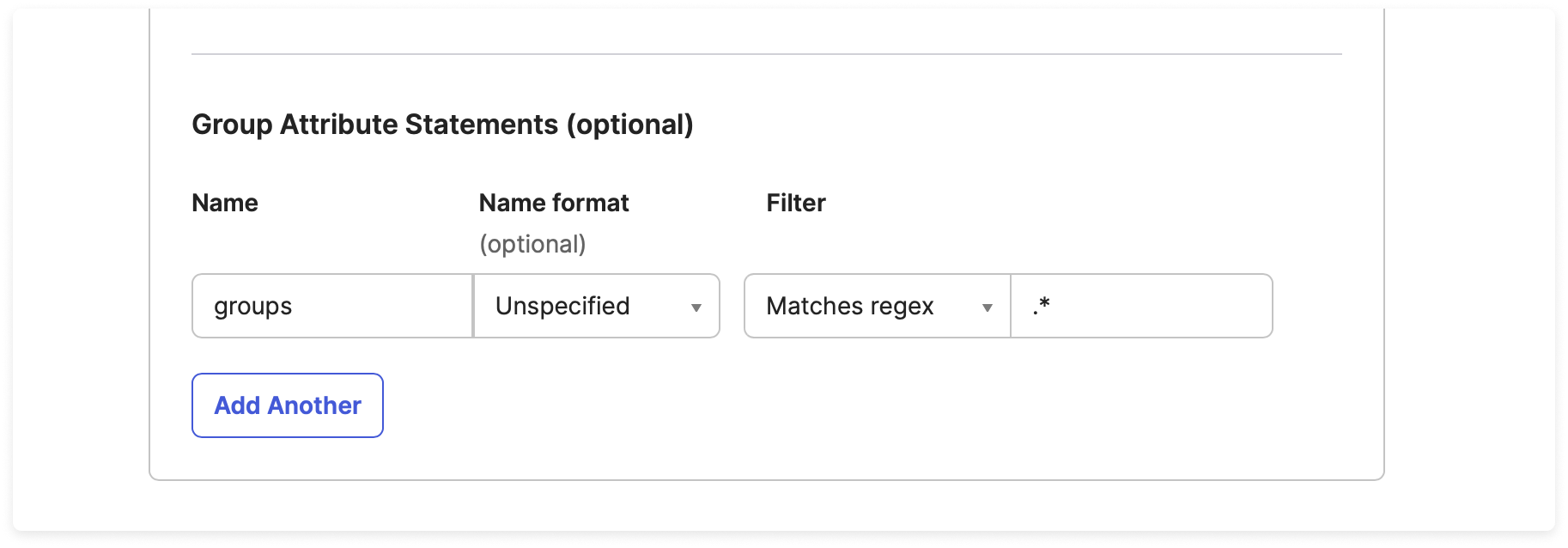

    Okta group attribute settings
info

If you need help with your specific identity provider, contact support@vantage.sh.
